Ute Canopies – QualityServices, Satisfied Customers

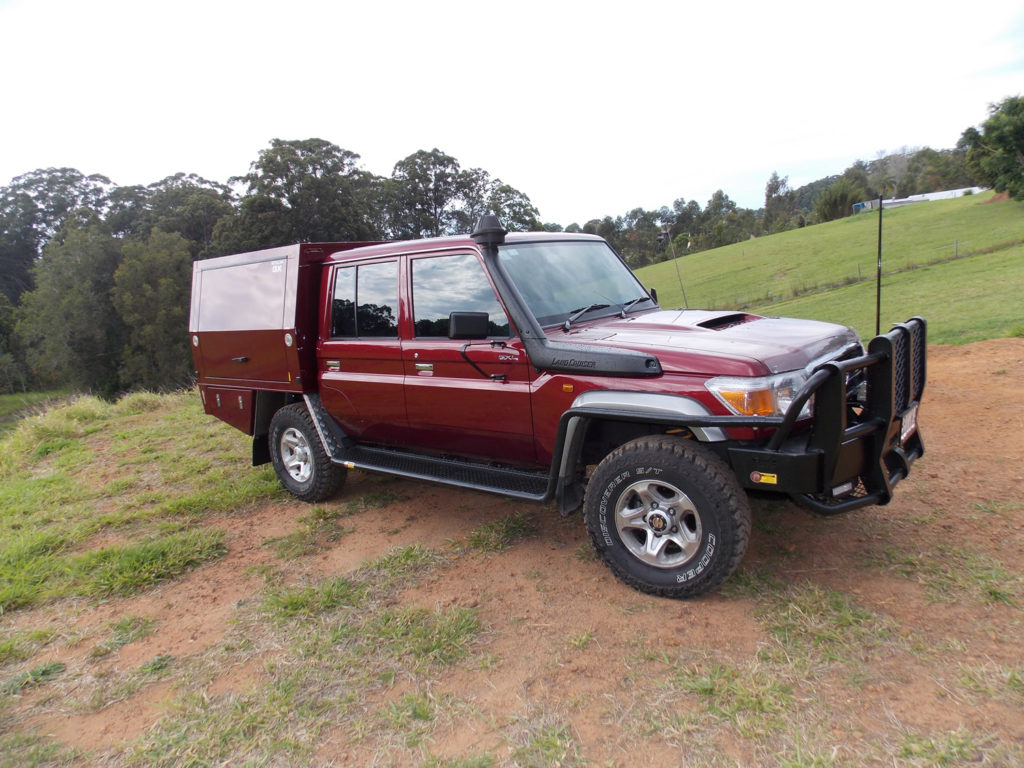

We have over 700 canopies and 350 Trays on the road–Our custom-built Ute canopies are made out of aluminium using a box section aluminium frame to support the sheet and a ply or sheet floor. The bottom corners of the frame are reinforced to accommodate the removal system jacks.

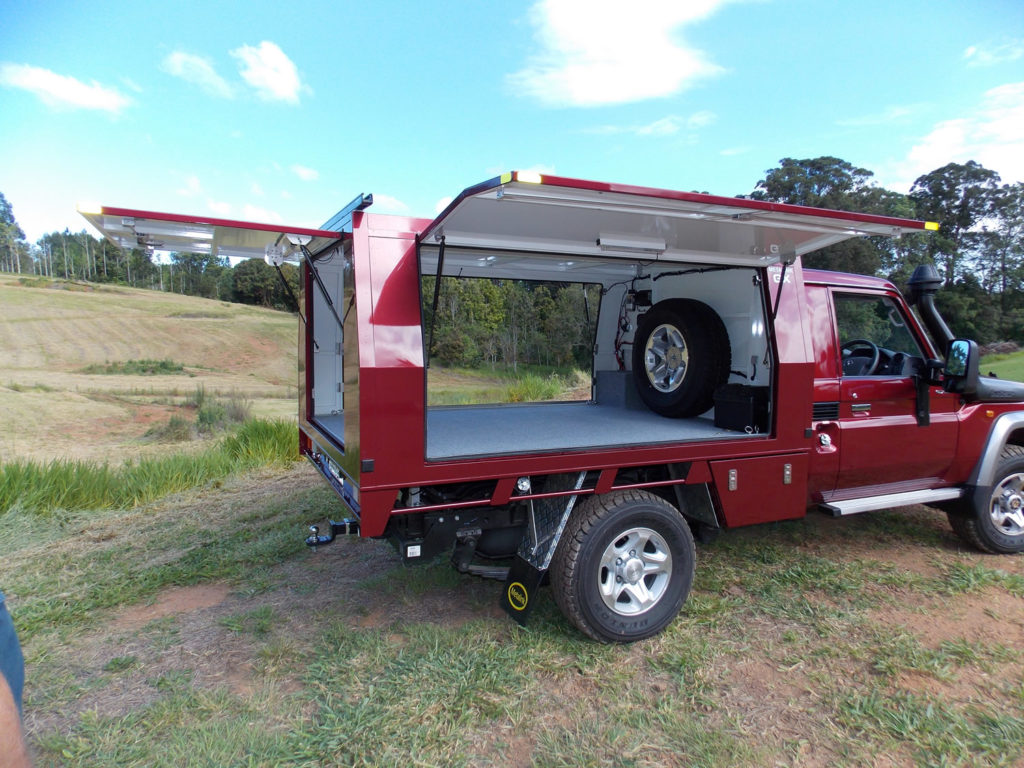

The doors have a box section frame in them also and we use a waterproof hinge to swing them and they are held open using 2 gas struts that are mounted onto stainless steel brackets with slots so the door height can be adjusted. The doors are held shut using a 2-point locking system and a single handle [central locking is an option], they can also be insulated and lined with a 1mm aluminium sheet which protects the doors from internal denting, lights are often mounted to the inside on this sheet.

The chassis mount models use a steel mount system that is sandblasted and epoxy coated to combat any corrosion, these can be changed to suit different brands of vehicles if the canopy needs to be changed over to another Ute.

All of the outside extras are bolted on, we do this so they are easily removed if they are damaged. We can fit poly water tanks and custom aluminium ones with pumps, taps etc to the inside of the canopies and under the Ute trays.

All the canopies are colour coded with automotive 2 Pac paint on the outside and painted white on the inside which is done by our own painters on our premises.

We fit all 12V and 240V electrical systems in house, we use AGM batteries, Lithium batteries and red arc systems, c-Tek and projecta chargers, others on request. We use a wide range of solar panels including red arc glass solar panels and semi flexible panels.
